Universal beams or I-beams and UB sections are a staple of modern construction with their unmatched level of strength, versatility, and affordability. Used extensively in domestic, commercial, and infrastructure constructions all over Australia, universal beams have a top-of-the-range strength-to-weight ratio, a more advantageous distribution of the load, and superior durability with a tolerance to regional standards such as AS/NZS 3679.1. This article looks at a number of technical benefits of universal beams to establish the reasons why universal beams are the structural engineer’s top preference in Australia.
Understanding Universal Beams: Definition and Standards

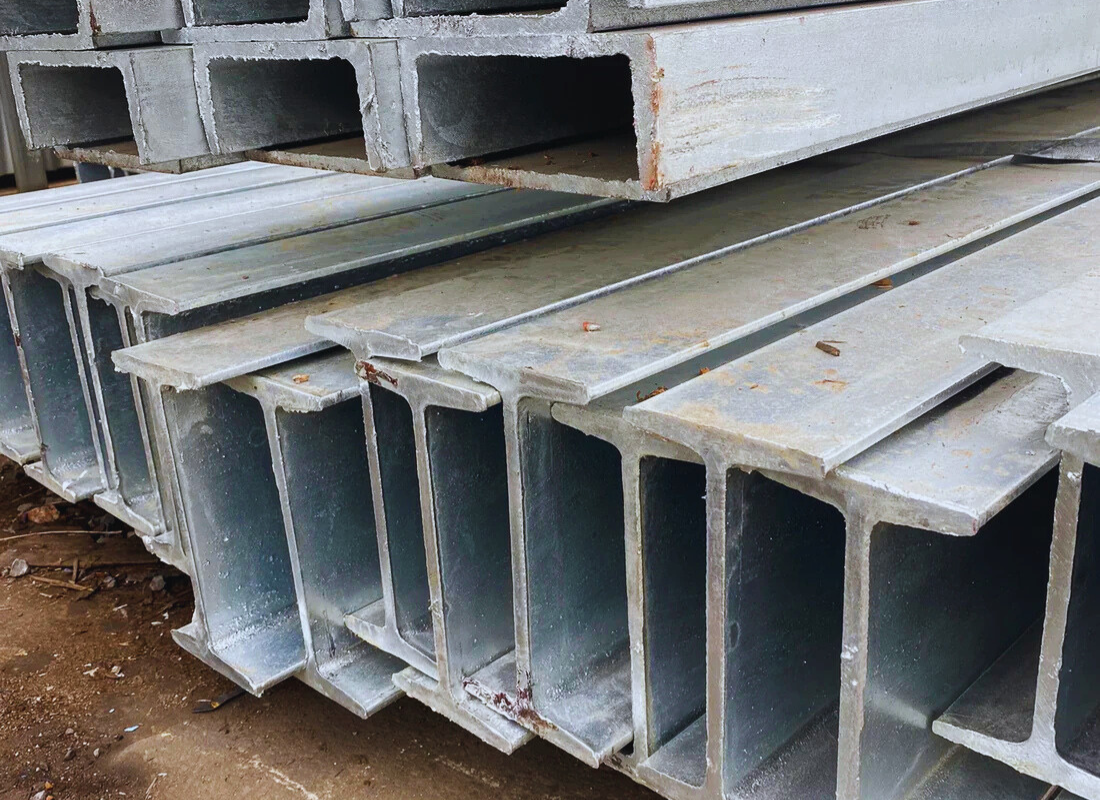

Universal beams are I-section steel beams with two parallel flanges and a web that joins them at their centre. The beams offer very high bending resistance and shearing and are a standard feature when framing buildings and building bridges.
Universal beams manufactured in Australia and New Zealand are manufactured to AS/NZS 3679.1, and the standard dictates the chemical, the mechanical, and the dimensional requirements of the Grade 300 and Grade 350 products. Compliance to the same to the letter assures reliability and interchangeability in all projects within the country.
Key Technical Advantages of Universal Beams
1. High Strength-to-Weight Ratio
Universal beams have one of the best strengths-to-weight characteristics of any structural shape. I-shape positions maximises material in flanges, where bending stresses are maximum, and reduces web thickness to cut overall weight without compromise of service. This efficiency contributes to lighter superstructures and foundations and delivers piling and concrete savings.
2. Improved Load Distribution and Stiffness
Due to the large second moment of area around the strong axis, universal beams have excellent resistance to deflection under bending. The web resists shear forces well and the flanges carry the majority of the bending moments, and thus the distribution of the load becomes uniform. This is very useful in the case of long spans in bridge decking, warehouses, and auditoriums where the deflection should be extremely small.
3. Design Flexibility and Standardisation
Universal beams are available in a large variety of depths, flange widths, and weights to enable engineers to choose sections having exact requirements to fulfil loading and span demands. Having standardised dimensions, standard connection details, i.e., bolted or welded joint details, are easily designed and produced, making the fabrication and erection processes onsite less complex and less costly.
4. Cost-Effectiveness and Sustainability
Optimised universal beams save materials, and this equates to reduced steel consumptions and transport costs. In addition, steel is recyclable without limit, and universal beams incorporate a lot of recycled content, with many supporting Australia's sustainability strategy and minimising embodied carbon within construction.
5. Ease of Fabrication and Assembly
The parallel flanges of universal beams provide straightforward connection detailing with standard plates, angles, and welding without resorting to washers and special shape gussets. Parallel flanges also have a consistent cross-section, and their welding, drilling, and cutting performance can be predicted, reducing mistakes and site adjustments.
6. Durability and Low Deflection Over Time
Steel structural beams show minimal or no long-term creep or shrinkage, guaranteeing consistent performance over a building's lifespan. The universal beams will not warp, twist, or bow, ensuring that the alignment of floors, ceilings, and facade components is not disrupted, a highly valued property in precision-sensitive projects like mezzanines and steel-framed residences.
Use in Australian Construction
1. Residential and Commercial Spaces
Universal beams are main floor and roof beams in multi-storey buildings and bigger residential homes, enabling free-flowing floor plans with fewer internal columns. Slim profiles provide a maximum headroom and ceiling void, beneficial in top-of-the-range city apartments where every millimetre is precious.
2. Industrial and Infrastructure Projects
Warehouses and industrial buildings and bridges usually require long span with heavy-load carrying capacity. Universal beams fulfil such demands with minimal intermediate supports and foundation loads. In Australia, the higher yield point is adopted in rail bridges and flyovers by using Grade 350 beams in infrastructural development.
3. Retrofitting and Extensions
The versatility of universal beams lends themselves to the strengthening of structures or the inclusion of added mezzanines. Retro-fitted UBs are easily integrated in retrofit schemes with standardised sections, and new steelwork can be welded or bolted to them with minimal or no interruption.
Conclusion
Universal beams integrate the highest performance, versatility, and economy together within a single structural component and are now a feature of construction in Australia. Used for suburban houses to skyscrapers, universal beams have a consistent structural strength-to-weight ratio, reliable behaviour, and compliance with AS/NZS 3679.1 standards ensuring cost-efficient, sustainable, and safe buildings.
And with builders and engineers valuing such technical advantages, informed choices can be made to optimise structural integrity, reduce delivery complexities, and meet Australia's rapidly developing infrastructural demands.
